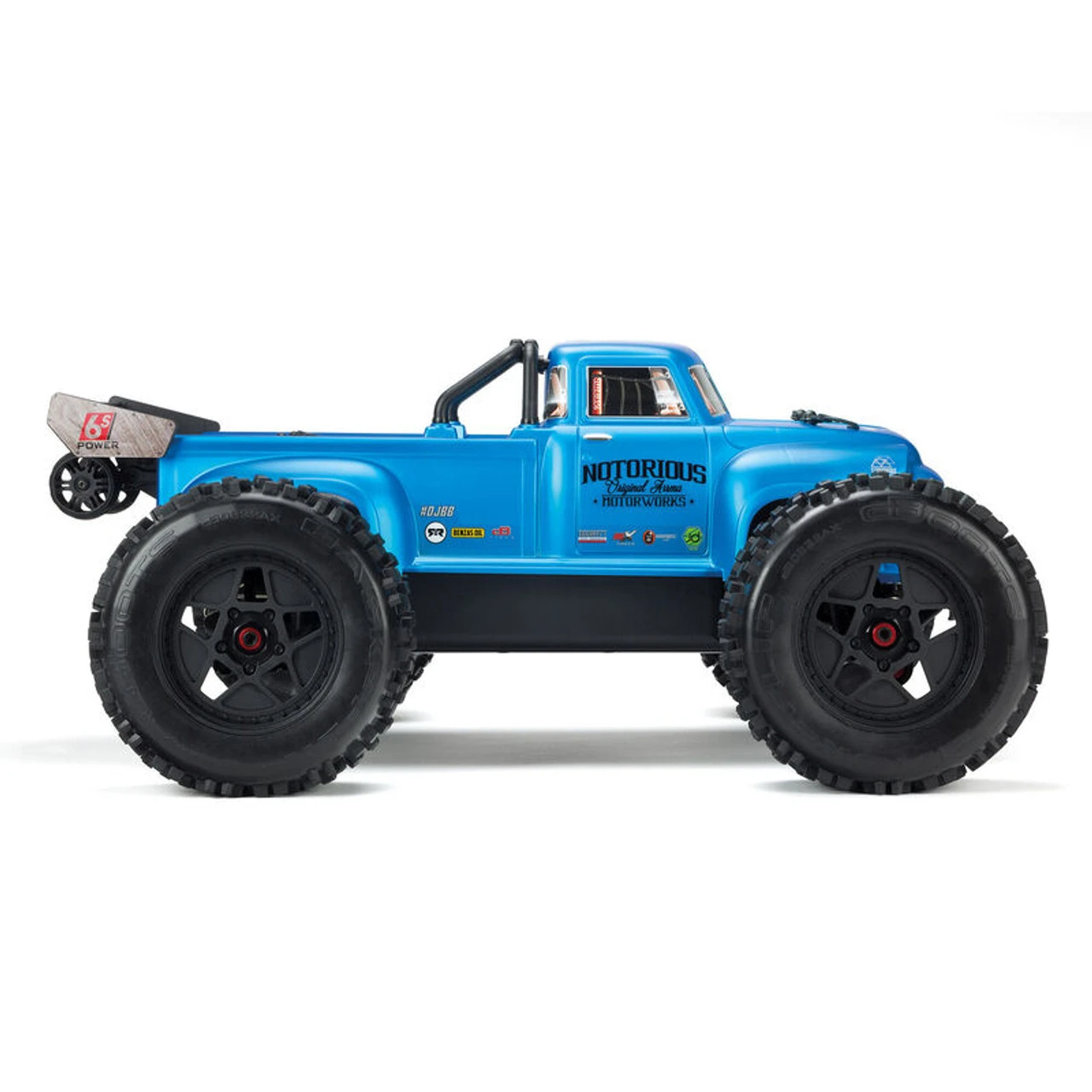

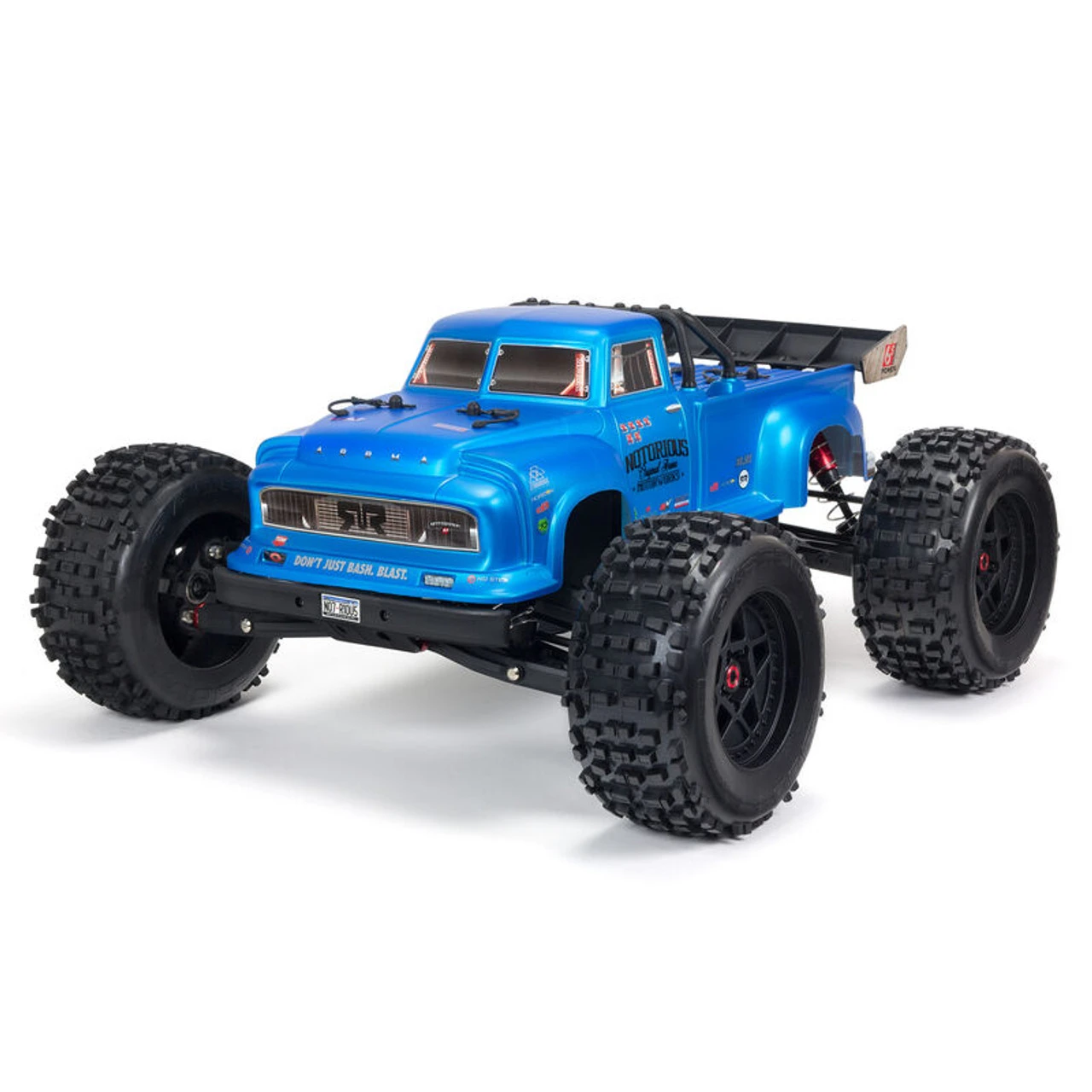

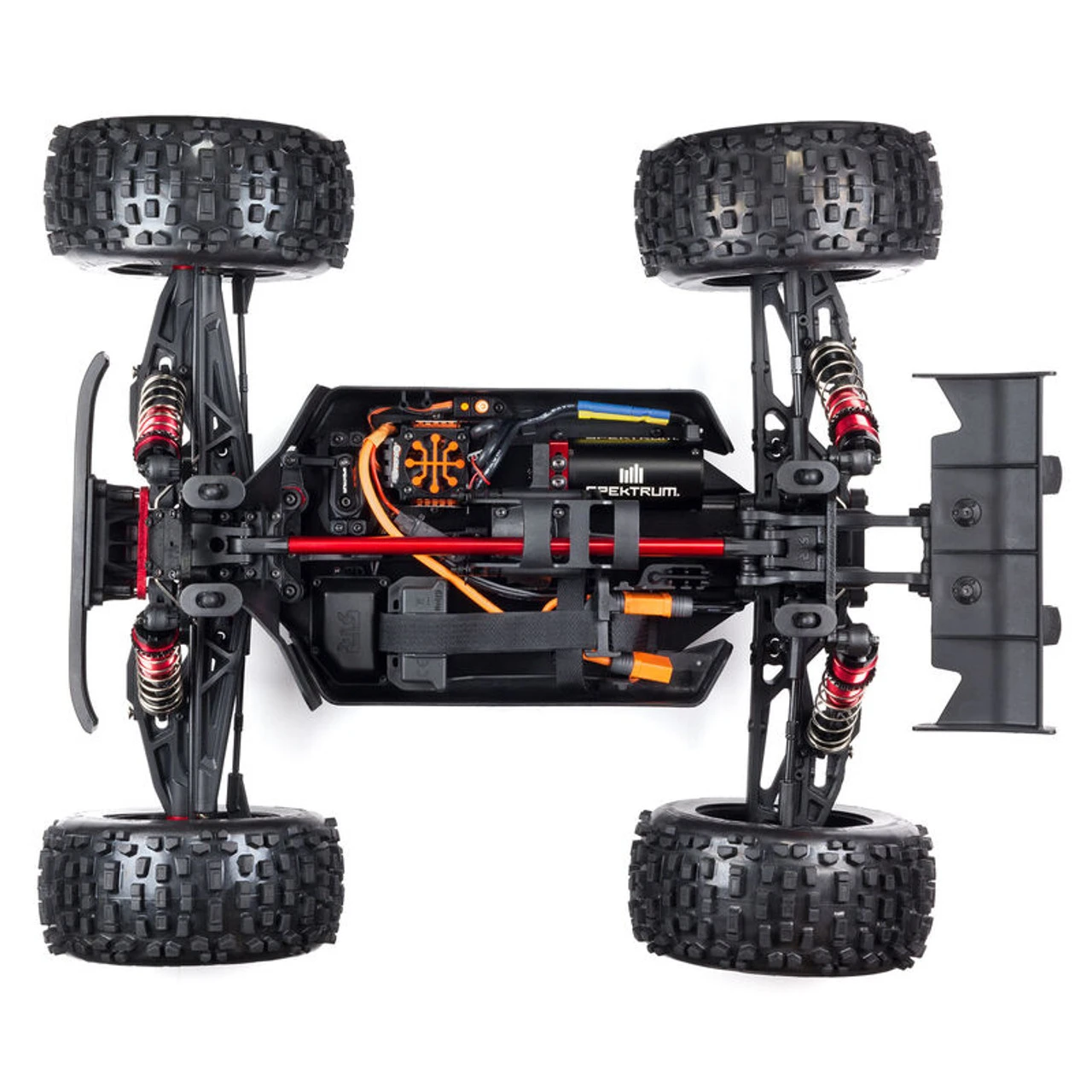

ARA8611V5T2 ARRMA 1/8 NOTORIOUS 6S V5 4WD BLX Stunt Truck with Spektrum Firma RTR, Blue
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Note: Graves RC Coupons are not applicable with this product
Features
- Ready-to-run
- Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
- Spektrum™ SR315 Dual Protocol 3-Channel Receiver
- Spektrum™ S652 Digital Servo
- Spektrum™ Firma™ 150A Smart ESC

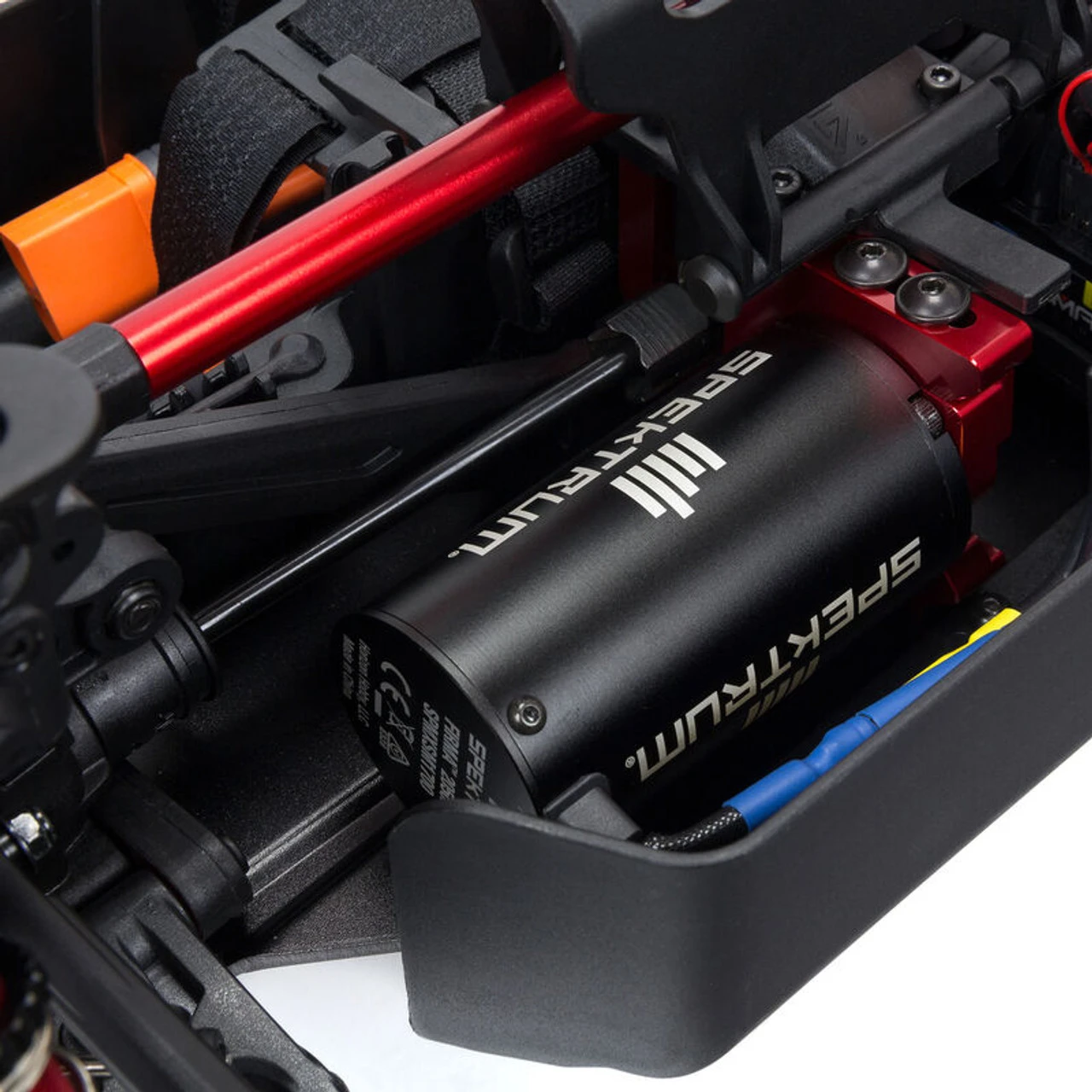

- Spektrum™ Firma™ 4074 2050Kv Brushless Motor
- Stronger chassis design
- EXB compatible front brace

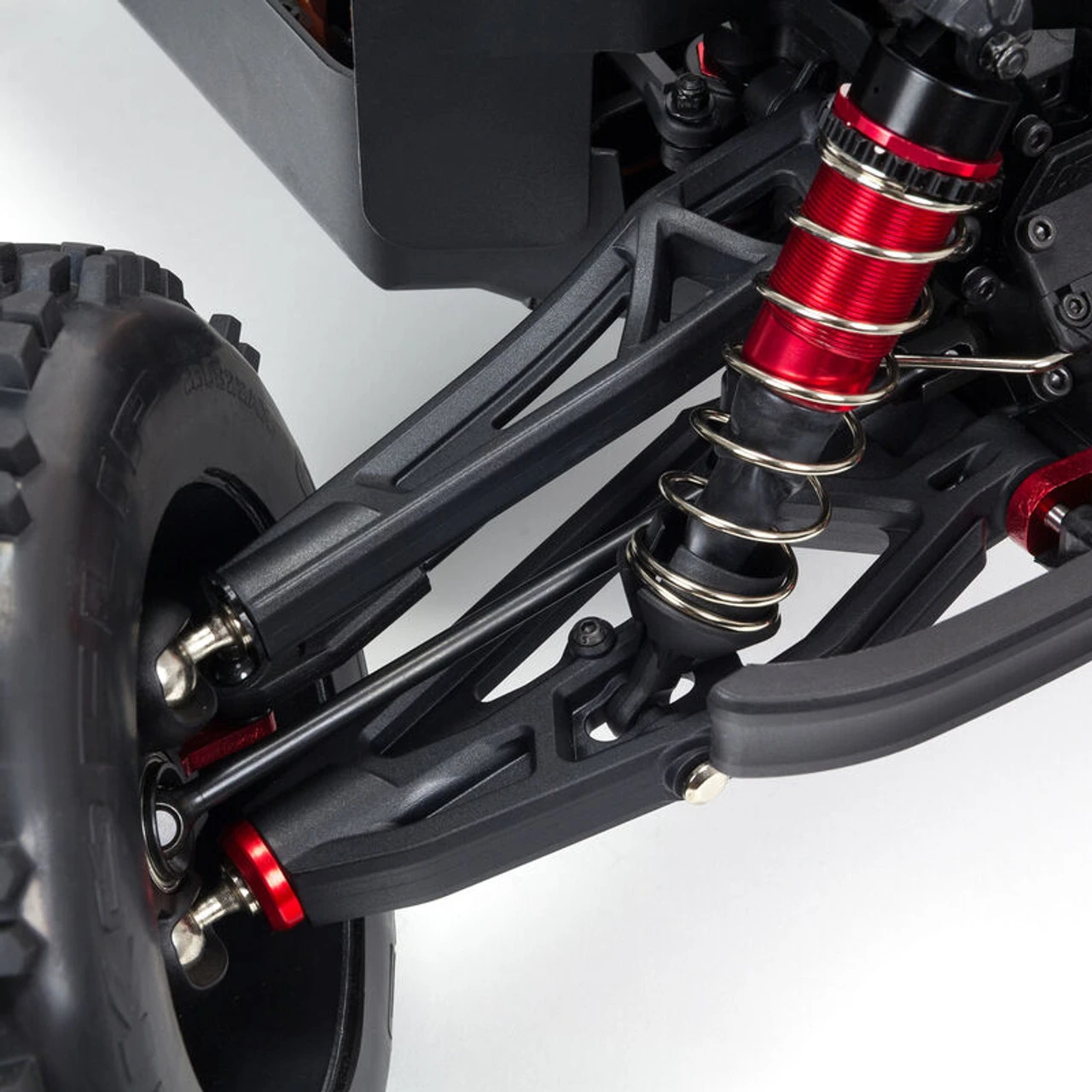

- Heavy-duty arms front and rear
- Updated Rear shock tower geometry
- Large volume waterproof* receiver box
- Anodized aluminum chassis
- Strong composite chassis side pods

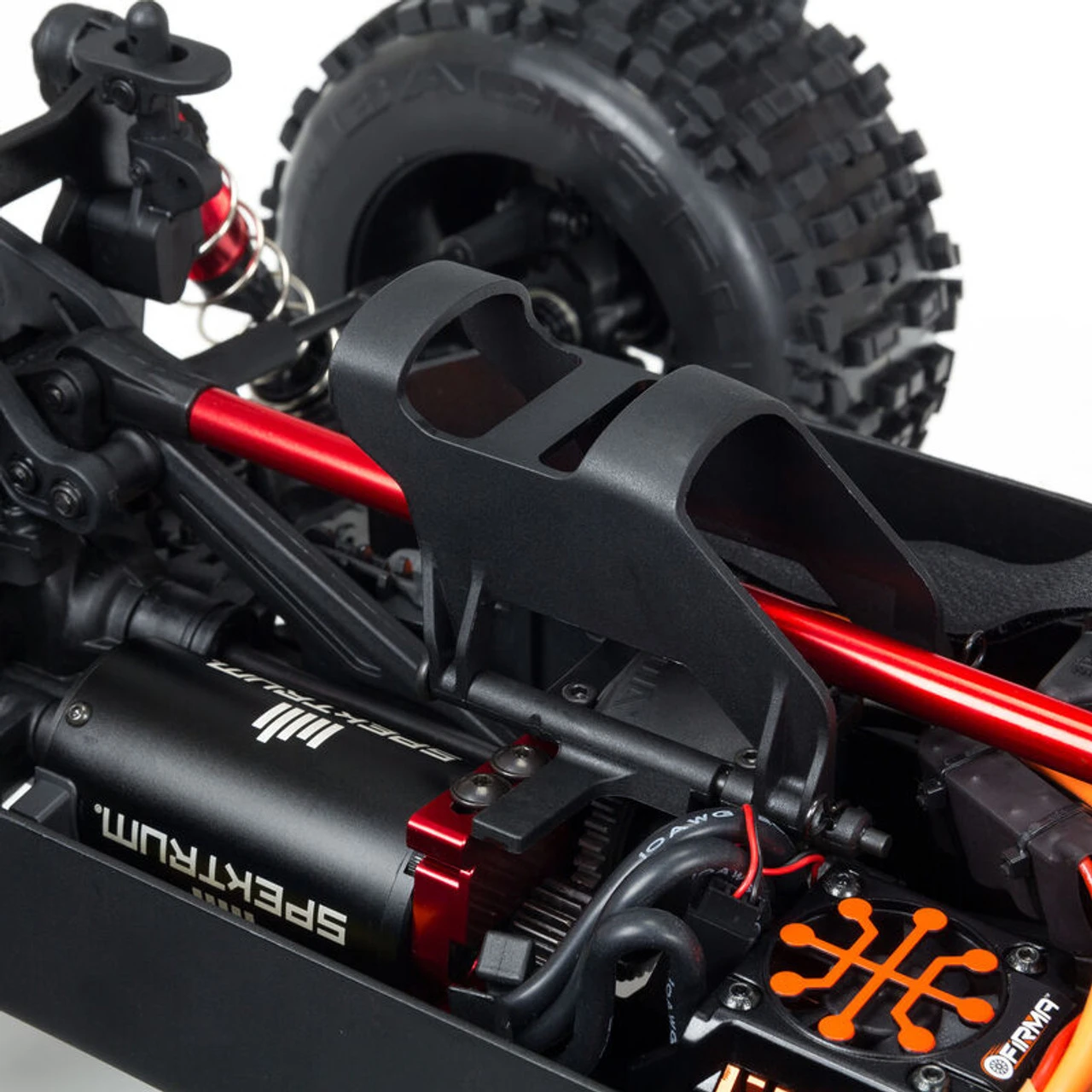

- Center body support and brace for maximum durability

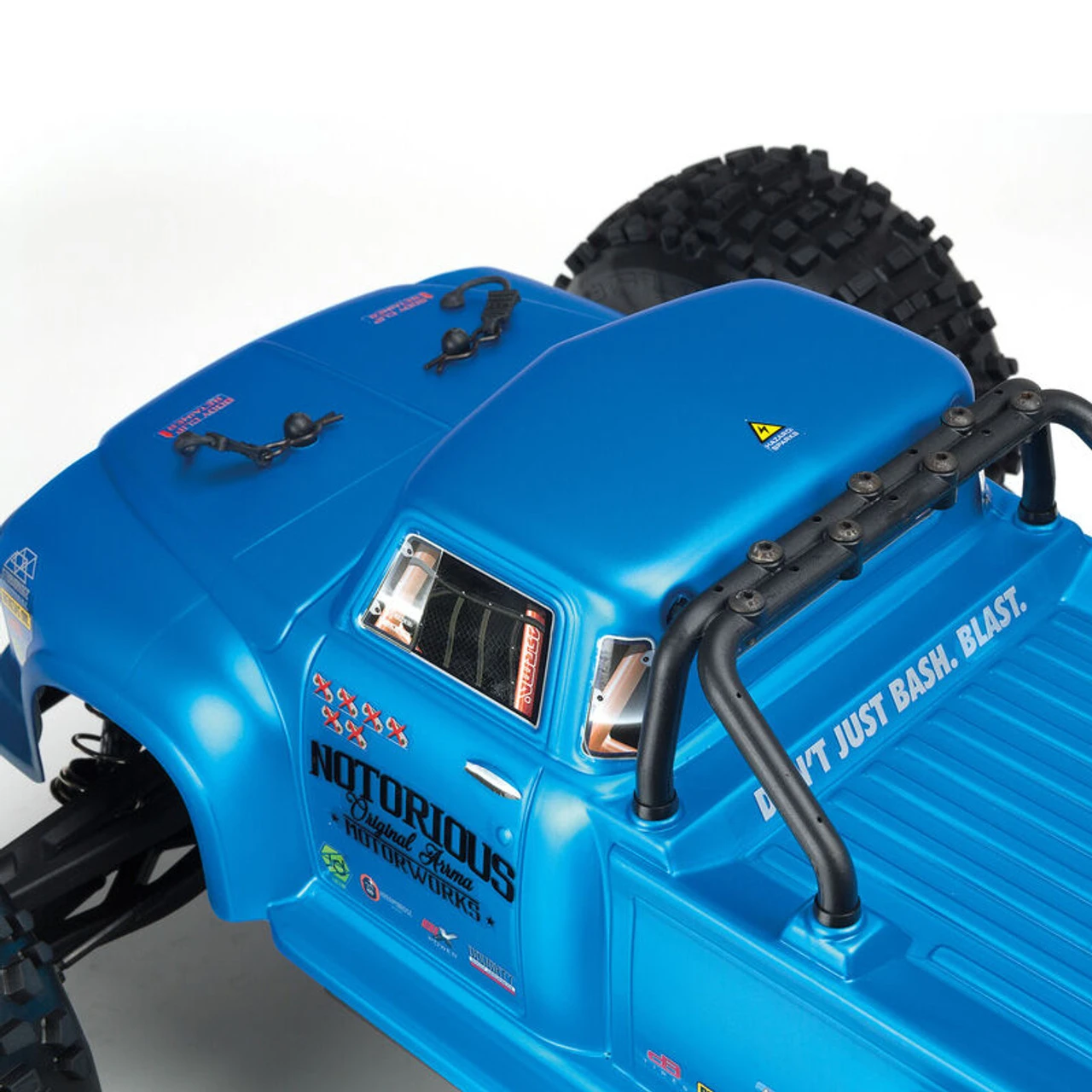

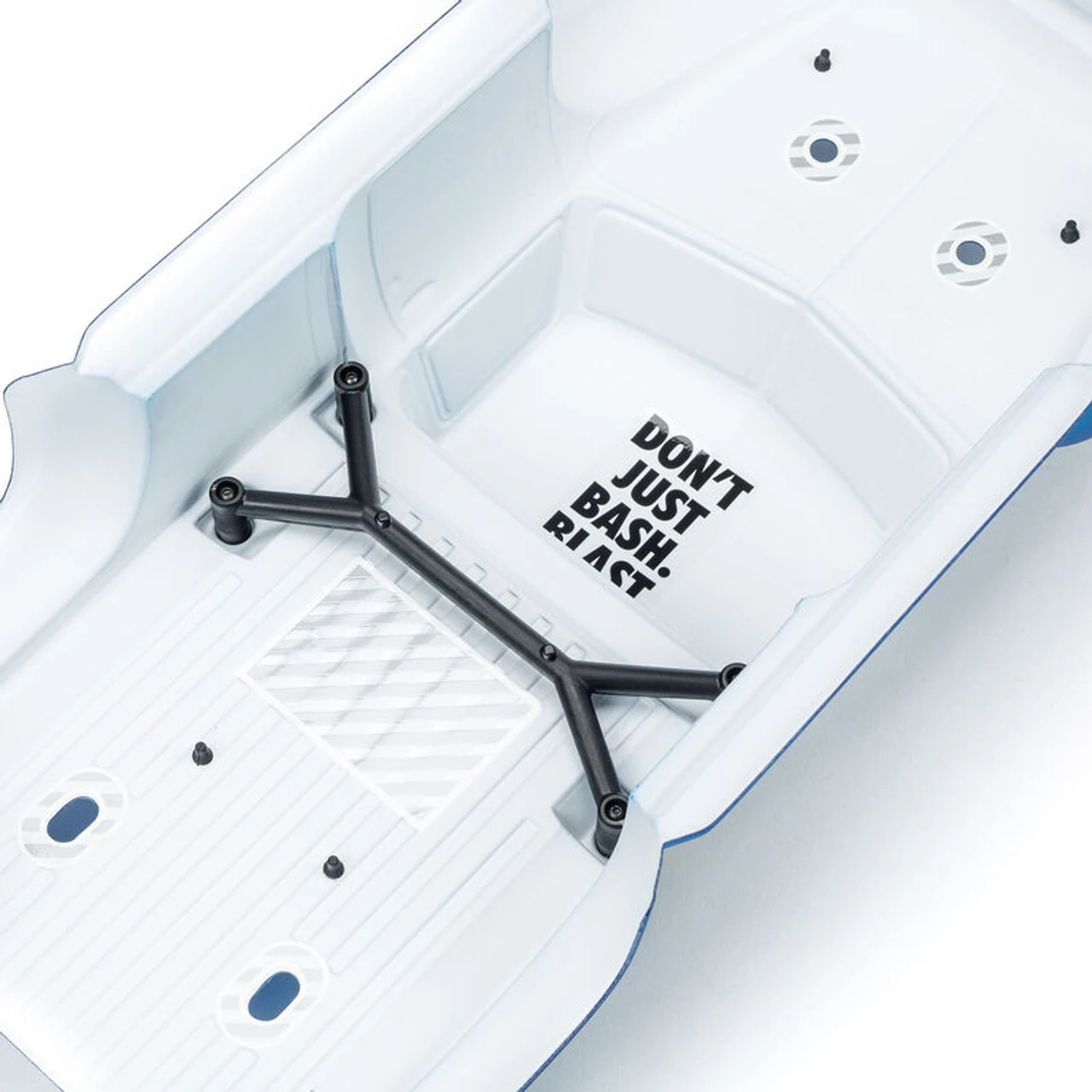

- Internal body protection roll bar
- High downforce wing
- Wheelie bar
- Oil-filled adjustable shocks
- Black-anodized aluminum front and rear shock towers
- Durable steel driveshafts throughout
- Heavy-duty drivetrain
- All-metal diff outdrives and gearbox internals
- Never-loose red aluminum servo saver
- Never-pop ball ends

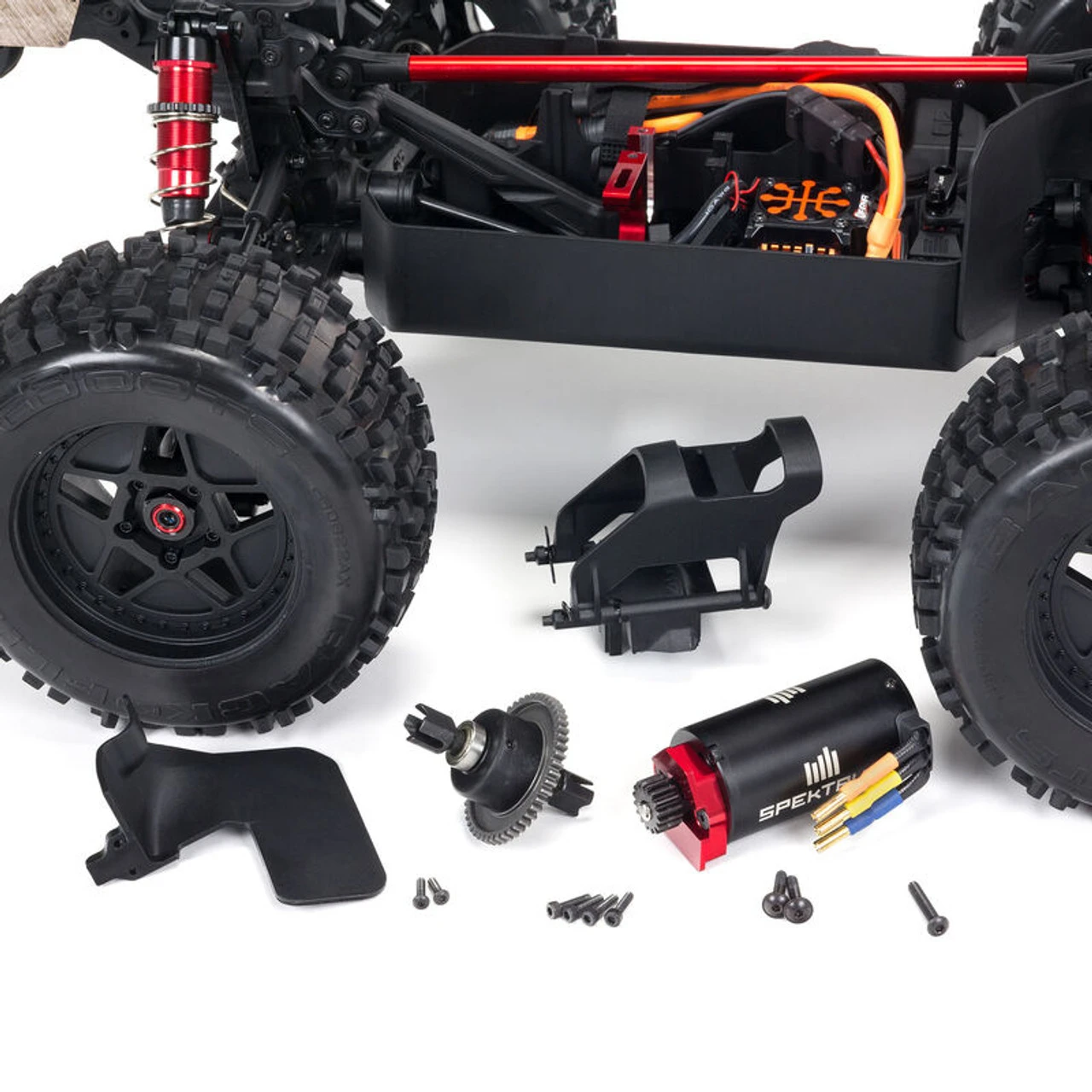

- 5-Bolt center diff removal
- Easy-access sliding motor mount for quick motor removal
- Hub nut O-rings
- Super-durable wheel hubs for increased strength
- Tough stunt truck wheels
- Multi-terrain dBoots® BACKFLIP™ tires
- “Real Steel” effect body for enhanced realism
- IC5® connectors (EC5™ compatible)
- 2-year limited warranty (see manual for details)
In The Box
- ARRMA® NOTORIOUS™ 6S BLX 1/8 Stunt Truck 4WD RTR
- Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
- Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
- Spektrum ™ S652 Metal-Geared Digital Servo (installed)
- Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
- Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio
- Product Manual
Needed to Complete
- 4S or 6S LiPo Battery
- LiPo Compatible Charger
- LiPo Charging Bag
- (4) AA Batteries
Specifications
| Approximate Assembly Time | No assembly required |
| Ball Bearings | Full set |
| Battery | Sold Separately |
| Body | Painted, trimmed and decaled |
| Brakes | User programmable |
| Charger | Sold Separately |
| Chassis | 0.12″ (3mm) 6061-T6 aluminum |
| Completion Level | Ready-To-Run |
| Differential | Front center and rear geared differentials |
| Drivetrain | 4WD |
| Drive Type | Forward/Brake/Reverse |
| Final Drive Ratio | 17.92 |
| Front Shock Spring Rate | 5.0lbs/in (0.87n/mm) |
| Front Track | 18.15″ (461mm) |
| Power Type | Electric |
| Gear Pitch | 1.0MOD |
| Internal Gear Ratio | 4.3 |
| Motor Size | 4074 |
| Motor Type | Brushless – Sensorless |
| Pinion | 12T |
| Product Height | 9.06″ (230 mm) |
| Product Length | 21.26″ (540 mm) |
| Product Weight | 11.37lbs (5.17kg) |
| Product Width | 18.15″ (461 mm) |
| Radio | Included |
| Rear Shock Spring Rate | 6.2lbs/in (1.09n/mm) |
| Rear Track | 18.15″ (461mm) |
| Receiver | Included |
| Scale | 1/8 |
| Servos | Included |
| Shock Type | Aluminum body oil-filled adjustable |
| Speed Control | Included |
| Spur Gear | 50T |
| Suspension | Independent |
| Tire Tread | dBoots BACKFLIP |
| Tire Type | Multi-terrrain |
| Water-Resistant | Yes |
| Wheelbase | 12.91″ (328mm) |
| Wheel Hex Size | 17mm |
| Wheel Type | MT, 3.8″ (97mm) diameter |
| Wheel Width | 3.0″ (77mm) |
